    Horizontal non-steering

    Horizontal non-steering drive wheel

    Horizontal non-steering drive wheels are devices designed to allow traction and movement in a single direction; therefore, they cannot steer independently.

    Created by combining wheels with AC, DC, and PMAC electric motors, they are widely used in industrial settings, where linear motion, stable and consistent traction are required. They are also part of electric drive units ideal for mobility on preset routes. The ability to integrate with control systems greatly increases precision and reliability.

    Explore our horizontal non-steering drive wheels below. Contact us for purchase or even just for a consultation.

    costruttori-sistemi-movimentazione-elettrica

    OUR PRODUCTS

    Showing all 13 results

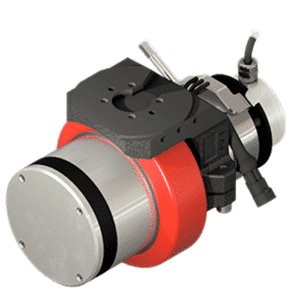

    • MR 150 FM

      Wheel diameter: 150mm Maximum wheel load: 200Kg Maximum torque at wheel: 90Nm Battery: 24-48V

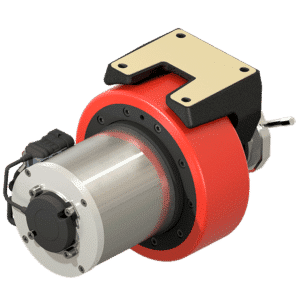

    • MR 200 FR

      Wheel diameter: 198mm Maximum wheel load: 600Kg Maximum torque at wheel: 180Nm Battery: 12-96V

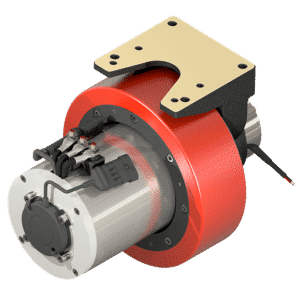

    • MR 220 FR

      Wheel diameter: 220mm Maximum wheel load: 600Kg Maximum torque at wheel: 230Nm Battery: 12-96V
    • MR 240 FR

      Wheel diameter: 250-260mm Maximum wheel load: 1150Kg Maximum torque at wheel: 300Nm Battery: 12-96V

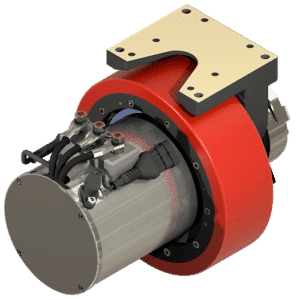

    • MR 250 FR

      Wheel diameter: 250-260mm Maximum wheel load: 1150Kg Maximum torque at wheel: 300Nm Battery: 12-96V

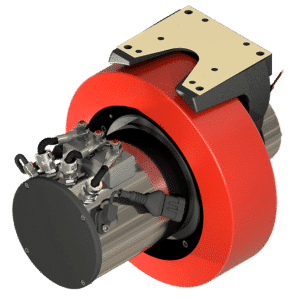

    • MR 300 FR

      Wheel diameter: 300mm Maximum wheel load: 1350Kg Maximum torque at wheel: 300Nm Battery: 12-96V

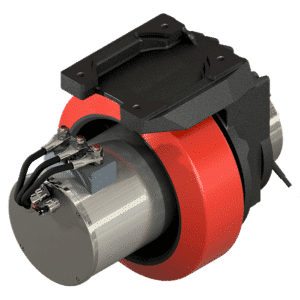

    • MR 270 FR

      Wheel diameter: 270mm Maximum wheel load: 1300Kg Maximum torque at wheel: 500Nm Battery: 24-96V

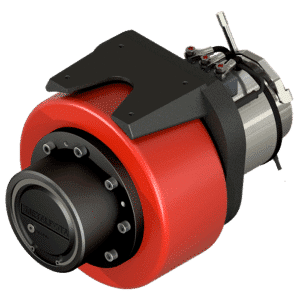

    • MR 260 B 300 FM

      Wheel diameter: 300mm Maximum wheel load: 1500Kg Maximum torque at wheel: 1200Nm Battery: 24-96V

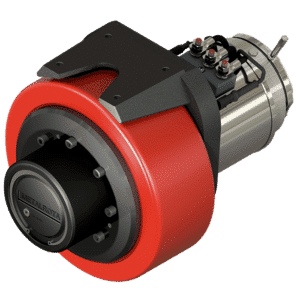

    • MR 260 B 350 FM

      Wheel diameter: 350mm Maximum wheel load: 2000Kg Maximum torque at wheel: 1200Nm Battery: 24-96V

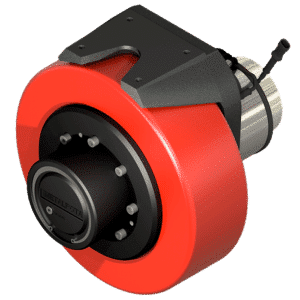

    • MR 260 B 406 FM

      Wheel diameter: 406mm Maximum wheel load: 2300Kg Maximum torque at wheel: 1200Nm Battery: 24-96V

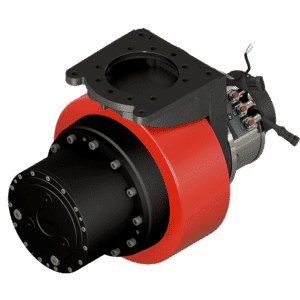

    • MR 350 FM

      Wheel diameter: 350mm Maximum wheel load: 2600Kg Maximum torque at wheel: 2000Nm Battery: 24-96V

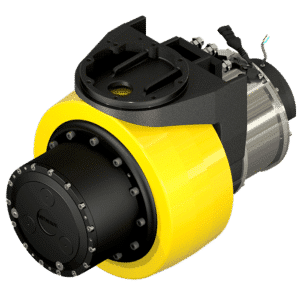

    • MR 415 FM

      Wheel diameter: 406mm Maximum wheel load: 4000Kg Maximum torque at wheel: 3600Nm Battery: 24-96V

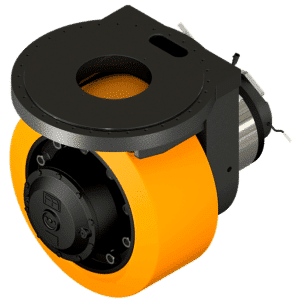

    • MR 600 FM

      Wheel diameter: 559mm Maximum wheel load: 6000Kg Maximum torque at wheel: 12000Nm Battery: 48-96V
